E-Bike Santa Cruz Heckler SL C R-Kit MX  gloss magenta

Collection spring 2024

Product ID: 140943

[Photos are illustrative and may not represent the actual setup of this bike model. See description below for exact specifications.] Fast,… detailed description

6 383.36 € Discount -15 % 7 509.84 €

  • Free shipping!
  • We deliver probably on Thursday 9. 1.

ZEZULA club Become a member of ZEZULA Club and get many benefits!

ZEZULA Club

ZEZULA club

The ZEZULA Club is a loyalty program for customers of the SNOWBOARD ZEZULA shop. Every customer who registers automatically becomes a member of the ZEZULA Club and can shop for cheaper prices and enjoy exclusive club benefits:

  • Up to 18% discount on non-discounted products on the e-shop and in the physical store
  • Extended 30-day exchange or return period
  • Priority order processing
  • Special discounts on already discounted goods
  • Discount on rental and service in the SNOWBOARD ZEZULA physical store

Colorways

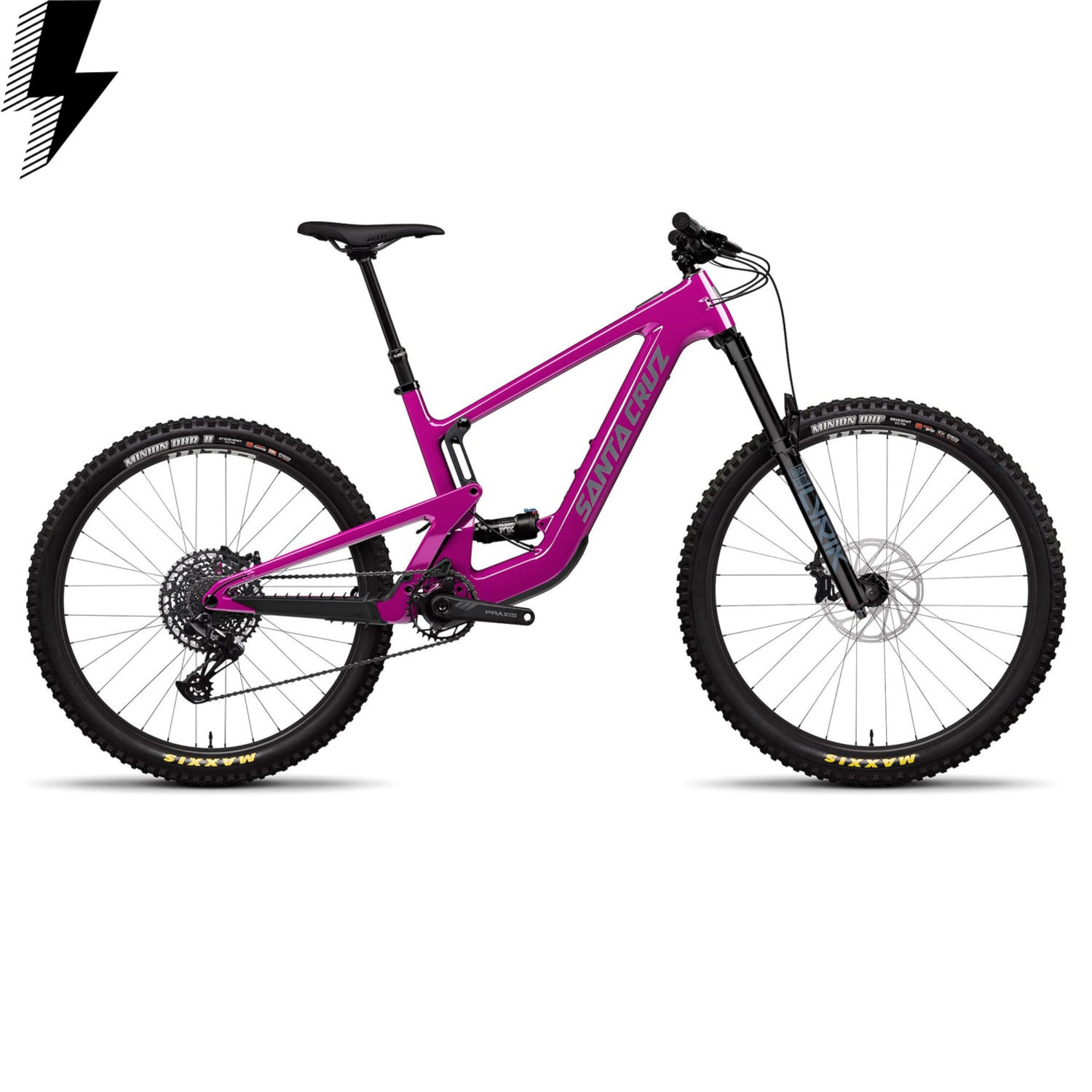

Santa Cruz Heckler SL C R-Kit MX E-Bike

[Photos are illustrative and may not represent the actual setup of this bike model. See description below for exact specifications.]

Fast, lightweight or tough? Choose all three qualities together!

Thanks to the FAZUA RIDE 60 drivetrain, the lightweight ebike Santa Cruz Heckler SL has plenty of power and a surprising range. There's no shortage of the renowned VPP suspension with 150mm rear travel, progressive geometry or mullet wheel combinations, making the Heckler SL a nimble and well-handling trail bike. Just with added electric support.

Middleweight World Champion

The Heckler SL is a trail bike with hidden superpowers. The reduced weight and natural torque distribution of the FAZUA RIDE 60 engine will give you the feeling of a classic trail bike. It just goes faster. At the same time, the range is close to full-fledged ebikes, despite the smaller battery. The key is the lower consumption of the FAZUA system and the lower weight of the bike.

The control element integrated in the frame enables switching between three riding modes and an overview of the battery status. More detailed settings and more detailed information will be provided by the FAZUA application.

Key features of Santa Cruz Heckler SL C R-Kit MX

  • Wheel Size: MX (mullet)
  • Front Stroke: 160 mm
  • Rear Stroke: 150 mm
  • Material: Carbon C
  • Drive Unit: FAZUA RIDE 60
  • Battery: 430 Wh

Specifications

Weight 19.55 kg
Material Carbon C
Fork RockShox Lyrik Base, 160mm
Shock FOX Float Performance, 210x55
Derailleur SRAM NX Eagle, 12 spd
Shifters SRAM NX
Cranks Praxis eTor AL, 104BCD, 165mm
Cassette SRAM PG1230, 12spd, 11-50t
Chain SRAM NX Eagle, 12 spd
Brakes SRAM DB8
Brake Discs Avid Centerline 200mm
Headset Cane Creek 10 IS Integrated
Handlebars e13 TRS Base
Stem e13 Bass
Grips Santa Cruz Bicycles House Grips
Front Hub SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h
Rear Hub SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rims WTB ST i30 TCS 2.0, 29" / 27.5"
Front Tire Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO
Back Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Seatpost SDG Tellis Dropper, 31.6
Saddle WTB Silverado Medium CroMo
Drive Unit FAZUA RIDE 60
Battery FAZUA 430 Wh Integrated Battery


Recommended Sizes

  • S: 155-165 cm
  • M: 165-175 cm
  • L: 175-185 cm
  • XL: 185-193 cm
  • XXL: 193-200 cm

How to register a Santa Cruz bike for a lifetime warranty

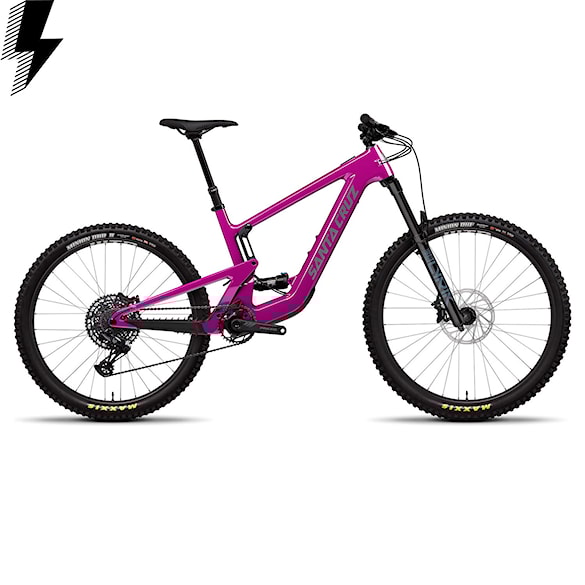

E-Bike Santa Cruz Heckler SL C R-Kit MX gloss magenta 2024

Parameters

M XL XXL
Weight (kg) 19.55 19.55 19.55
A - Reach (mm) 460/457,4 500/497,4 525/522,5
B - Stack (mm) 624/625,8 651/653 664,5/6666,5
C - Head Tube Angle (°) 64,3/64 64,3/64 64,3/64
D - Seat Tube Lenght (mm) 405 460 500
E- Front Center (mm) 795,4/795,3 848,4/848,3 879,9/879,8
F - BB Height (mm) 344/340,7 344/340,7 344/340,7
G - BB Drop (mm) 28,5/31,8 F:28,5/31,8 R:9,9/13,3 28,5/31,8
H - Wheelbase (mm) 1238,4/1239,1 1294,4/1295,1 1329,9/1330,5
I - Chainstay Lenght (mm) 443/443,8 446/446,8 450/450,7
J - Head Tube Lenght (mm) 110 140 155
K - Top Tube Lenght (mm) 602,7/602,9 641,8/642,7 669,1/670
L - Seat Tube Angle (°) 77,1/76,9 77,7/77,5 77,8/77,5
M - Standover Height (mm) 733/728,8 731,7/731,6 741/738,6

Santa Cruz Heckler SL C R-Kit MX gloss magenta
